Fastening structures for sports halls

Basketball fixing structures - a complete guide for halls, gymnasiums and sports arenas

Basketball fastening structures are the "backbone" of the entire basketball-table-rim set in a sports arena. The rigidity of the system, the safety of the players and compliance with the geometry of the court depend on them. SPORTPLUS systems, based on structural steel profiles and designed in accordance with PN-EN 1270 and FIBA requirements, are adapted to the type of facility, ceiling height, length of the hall and use of the court. In this category you will find both simple fixed structures and advanced structures for basketball vertically lifted and suspended from the ceiling.

1 The role of fixing structures in a basketball set.

The mounting structure transfers all loads from the backboard and rim to the wall, column or roof structure. During the game there are dynamic forces: ball impact, vibration, and in league play also additional loads on dunks. Therefore, professional basketball structures must provide:

• high rigidity and stability of the backboard-rim system,
• adequate overhang in relation to the end line of the court,
• safe distribution of loads on the hall structure,
• the ability to integrate with the backboard height adjustment mechanism,
• adaptation to 105×180 cm and 90×120 cm backboards.

All SPORTPLUS systems are based on closed steel profiles, welded and/or bolted, protected against corrosion (powder coating, and in selected solutions also hot-dip galvanizing).

2 The main types of basketball structures - fixed, tilting, raised and suspended

The category "fixing structures for basketball" includes four main families of solutions, which differ in mounting method, mobility and range of applications.

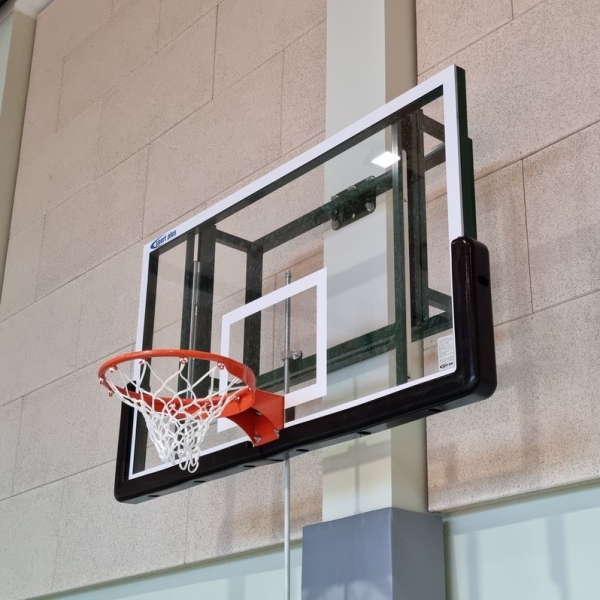

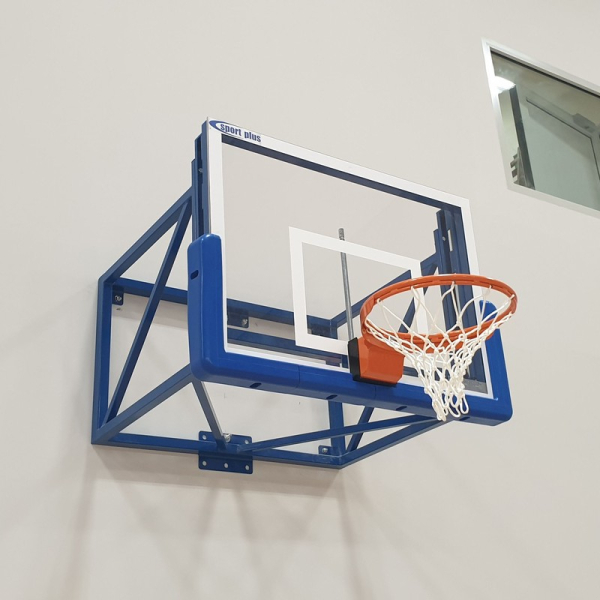

2.1 Fixed wall-mounted structures

Fixed wall -mounted structures are the simplest and most maintenance-free systems for halls, where the basket remains in a fixed position throughout the year. The steel profile frame provides an overhang that is adapted to the geometry of the playing field, and the structure is permanently fixed to the wall or posts. This is an ideal solution for training halls, club facilities and halls where the basketball court is the main function.

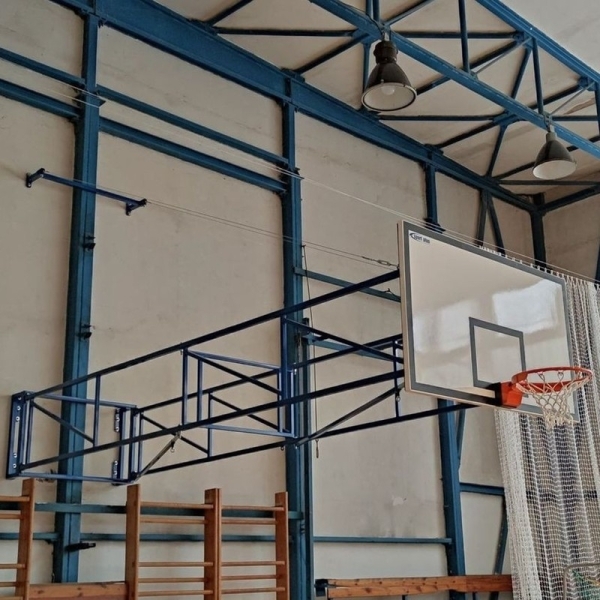

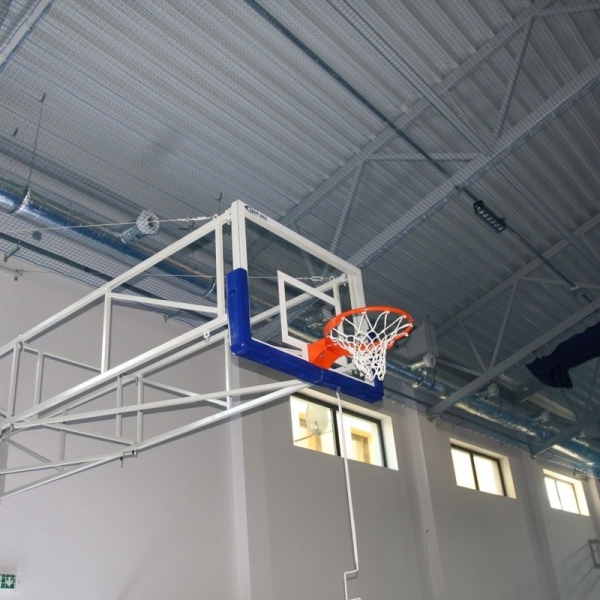

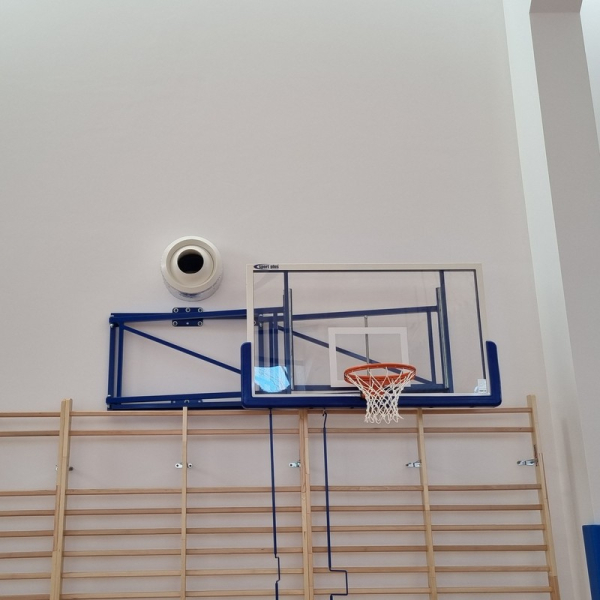

2.2 Tilt wall structures

Tilt structures allow you to fold the backboard parallel to the wall when the basket is not needed. They work well in classrooms and multi-purpose facilities, where the same space must support several sports. A tilt mechanism with a pivot arm and safety interlocks makes it possible to quickly switch from game mode to "park" mode of the set.

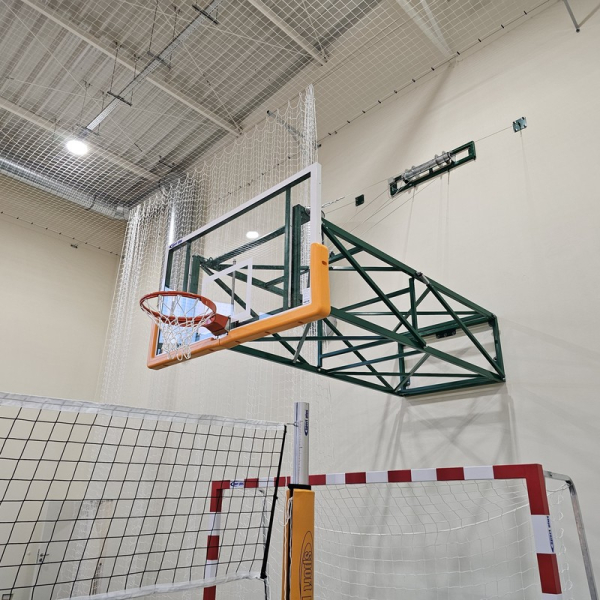

2.3 Vertical lift structures

Vertical lift structures are electrically driven systems that fold the set upwards - up to the ceiling. This makes it possible to completely remove the basket from the playing area and prepare the hall for other sports (volleyball, handball, events). Steel cables guide the board in a controlled manner, and the 230-volt drive works with safety interlocks and wired or radio control.

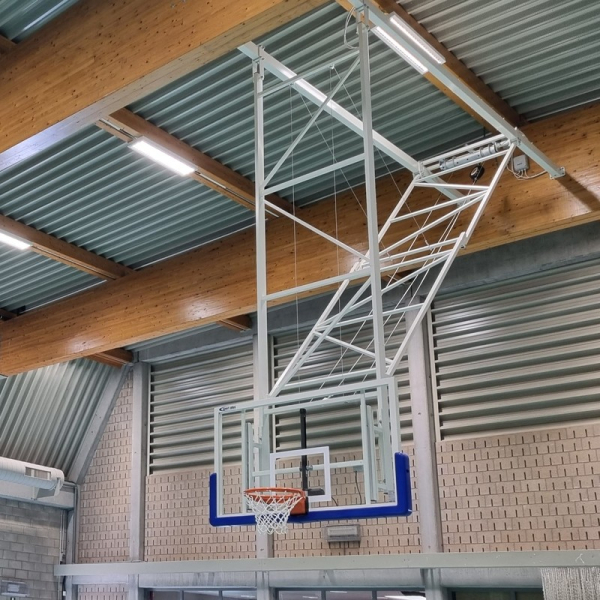

2.4 Ceiling-mounted suspended structures

Suspended baskets are mounted directly to the roof structure. This solution is recommended primarily for large halls (usually more than 36 m long), where there is adequate space above the pitch to assemble the set under the ceiling. The structure made of closed steel profiles, electric drive and rope system allow you to precisely position the board above the court, and in the resting position "hide" the basket above the playing field.

3 How to select the mounting structure for the type of facility?

It is useful to base the selection of a fixing structure for basketball on three key criteria: the type of facility, the geometry of the arena and the intensity of use.

3.1 Facility type

• Schools and smaller gymnasiums - usually fixed or tilt structures are the best choice. They allow to keep the operation simple, and in the tilt version quickly release the wall, for example, for volleyball or handball.
• Municipal halls and multi-purpose facilities - vertically raised structures and suspended baskets work better, so you can easily change the configuration of the court and organize various sporting events.
• Sports arenas and large-volume venues - here the standard are ceiling-suspended systems that allow several sets of baskets to be installed in parallel and fully retracted above the court.

3.2 Geometry of the arena

The choice of design is also influenced by the height of the ceiling, the length of the hall and the distance of the end line from the wall. Where the end line is very close to the wall, tilt and vertical-lift structures work particularly well. In tall halls with long roof spans, it is possible to use elaborate suspended baskets with height adjustment and folding frame.

3.3 Intensity and level of play

• Recreational and school use - fixed or tilt structures in combination with laminated or acrylic backboards and standard basketball hoops are sufficient.
• Club training and amateur leagues - structures with higher rigidity, often with adjustable height, reinforced hoops and backboard edge guards are recommended.
• League and tournament play - require sets that comply with PN-EN 1270 and FIBA practice, with 105×180 cm backboards, spring-loaded tilt rims, and structures with high rigidity and repeatable geometry.

4 Design and technical requirements - for investors and designers

When designing mounting structures for basketball, it is crucial to consider the supporting structure of the arena. In the case of elevated and suspended systems, it is necessary to document the roof: girder layout, beam spacing, ceiling height and location of installations (lighting, ventilation, sound system). On this basis, we select the method of anchoring, the spacing of suspension points and the parameters of the drive.
For electrically driven systems, we use solutions adapted to work with dynamic loads, with overload protection and the possibility of emergency lowering of the set. The structures are designed so that they can work with mechanisms for adjusting the height of the board, which is particularly important in facilities where the same hall serves both children and seniors.

5 Complete basketball set - from structure to accessories

To create a complete and safe basketball set, mounting structures must be combined with properly selected backboards, hoops and accessories. In the SPORTPLUS offer you will find:

• boards for sports halls - 105×180 and 90×120 cm, in laminated, acrylic, epoxy and glass versions,
• basketball hoops - standard, reinforced, spring tilt, in accordance with PN-EN 1270,
• nets for hoops - polypropylene and chainnets,
• backboardedge guards - to improve safety in the undercourt zone,
• basketball accessories - mounting elements, sets of screws, anchors,
• professional overhead baskets - a mobile supplement for halls where additional playing positions are needed.

Well-chosen basketball structures, combined with the rest of the equipment, form a coherent, safe and durable system that will work both in everyday use and during official competitions.

6 FAQ - frequently asked questions about basketball structures.

Which basketball structure should I choose for a small school room?

The most common are fixed or tilt wall structures. A fixed solution will work well where the basketball court is used regularly, while a tilting structure will allow you to fold the backboard parallel to the wall and free up space for other activities.

When is it a good idea to use vertically raised structures or suspended baskets?

Vertically raised and suspended systems are recommended for halls where it is necessary to frequently change the configuration of the court or organize various events. They allow the set to be fully "hidden" above the court, making it easier to use the space for other sports or events.

Can the backboard or hoop be changed later without replacing the structure?

In most cases, yes. SPORTPLUS basketball mounting structures are designed to be systemic - compatible with different types of backboards and basketball hoops. However, when changing equipment, it is worth consulting the technical department to verify the loads.

Do all structures comply with the PN-EN 1270 standard?

Yes, we design basketball structures intended for sports halls in accordance with PN-EN 1270 and the requirements of FIBA practice. This applies to both fixed and tilting, elevated and suspended systems.

Where do I start if I plan to modernize my hall?

The best first step is to take inventory of the current layout of the arena: ceiling height, distance of the end line from the walls, arrangement of girders and installations above the court. Based on this, we will choose the right type of basketball mounting structure and a set of equipment for backboards, hoops and accessories.
