Suspended structure with electric drive for basketball

Suspended structure of 105×180 cm whiteboard with electric drive for sports halls over 36 m long and ceiling up to 10 m. Controlled by remote control, lifting capacity 250-350 kg, voltage 230 V, power 410 W, height adjustment, PN certificate.

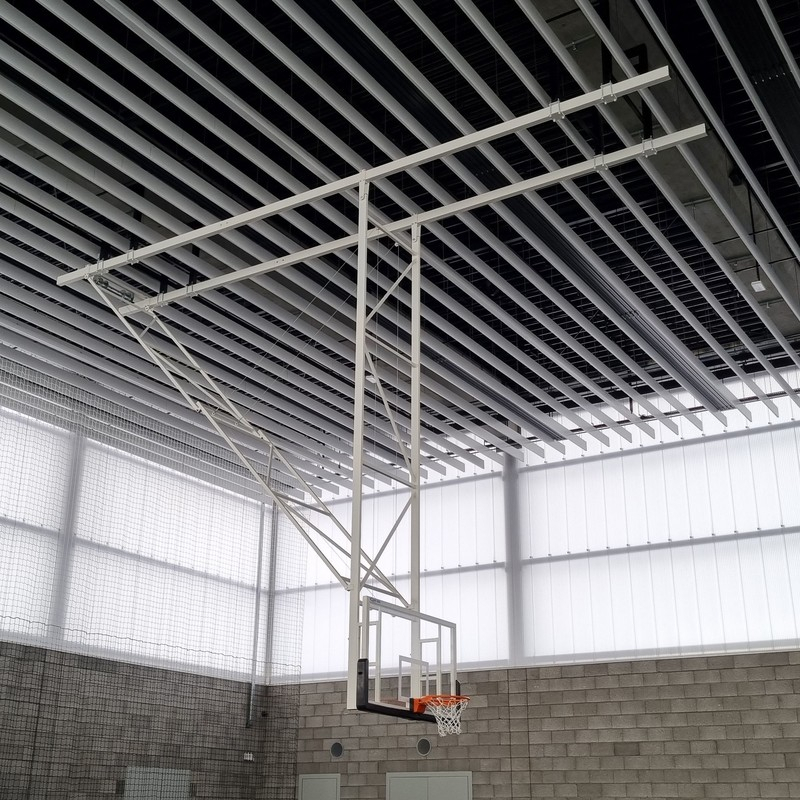

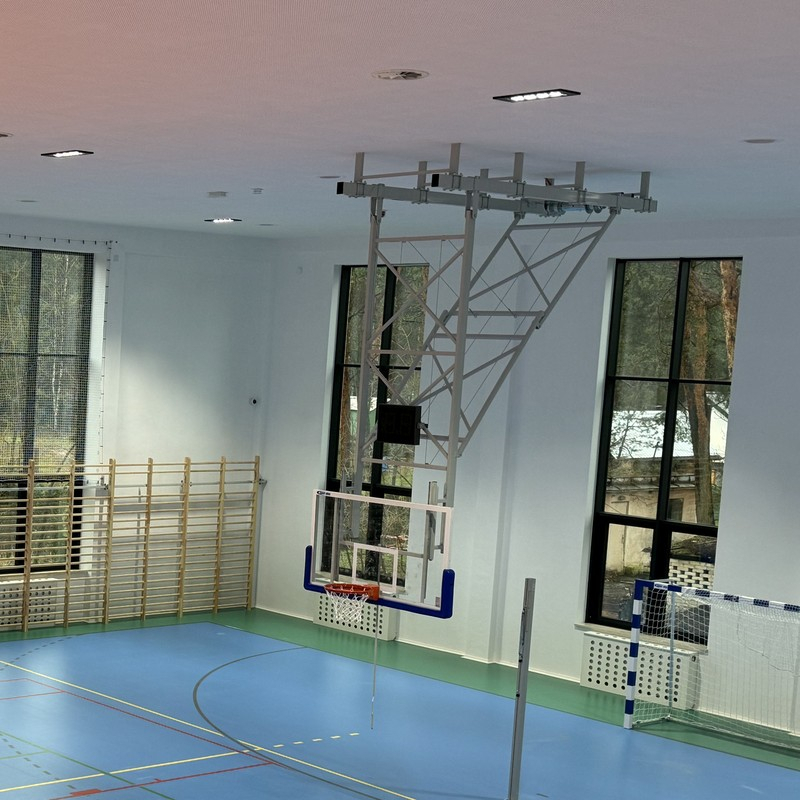

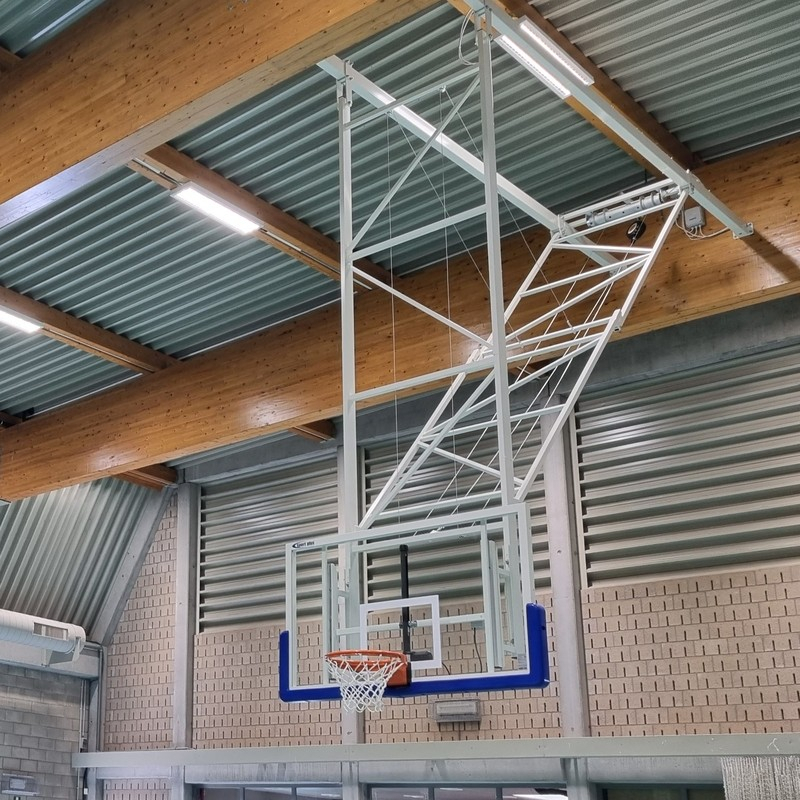

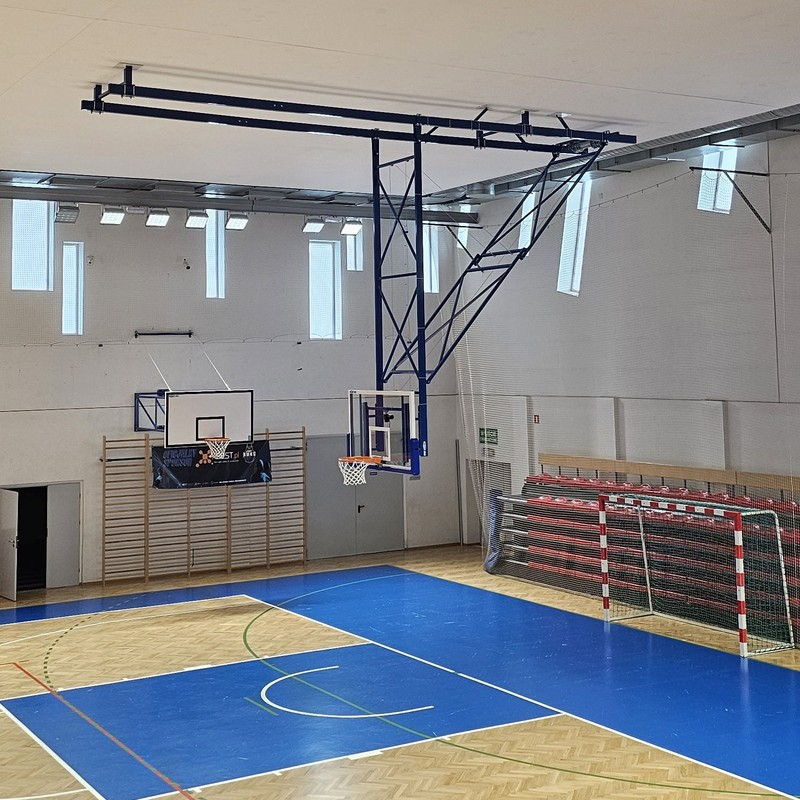

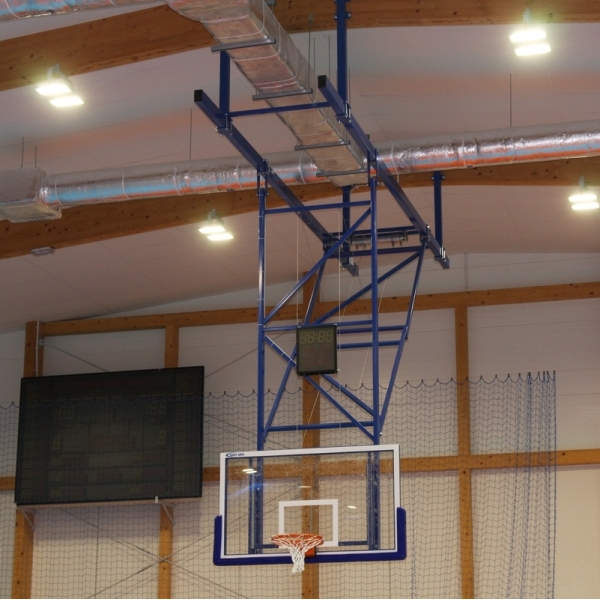

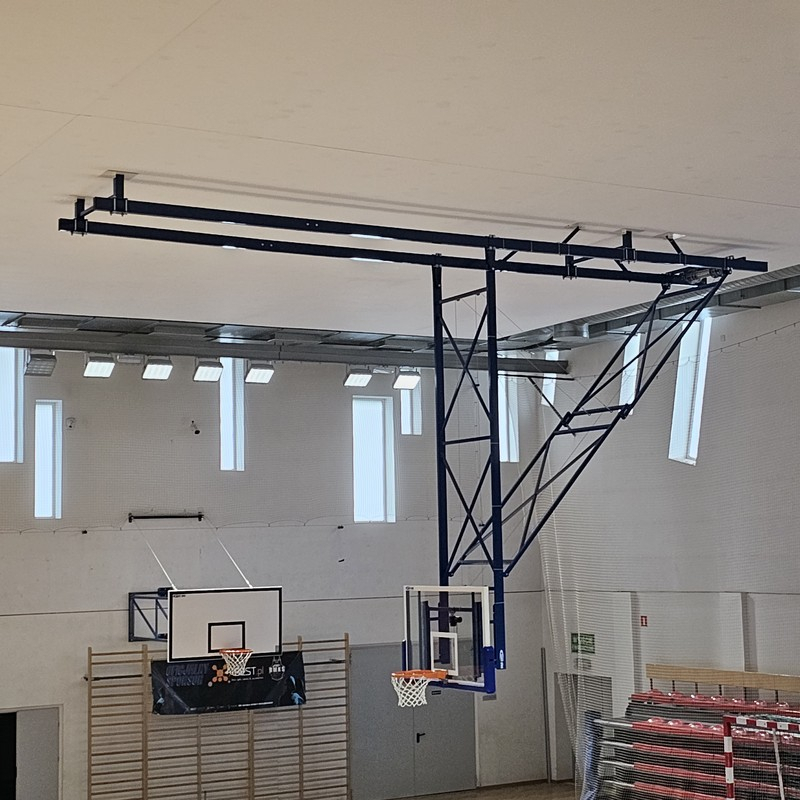

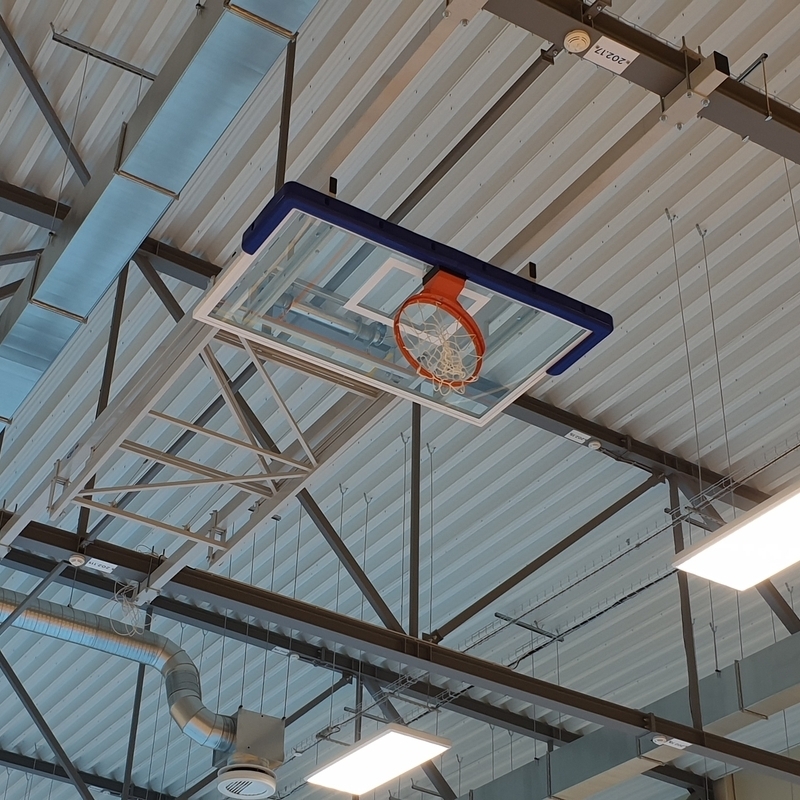

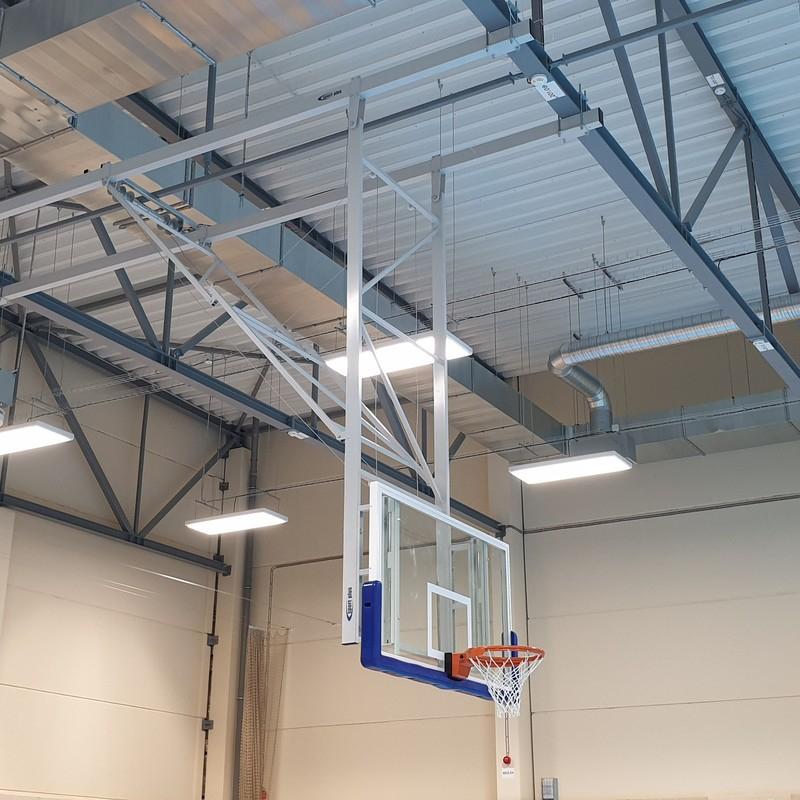

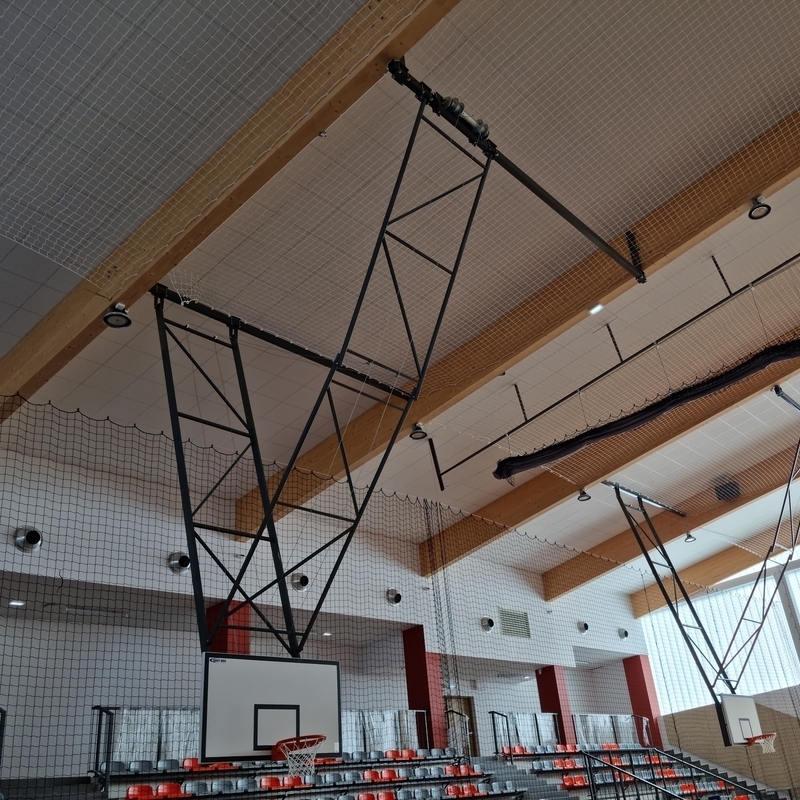

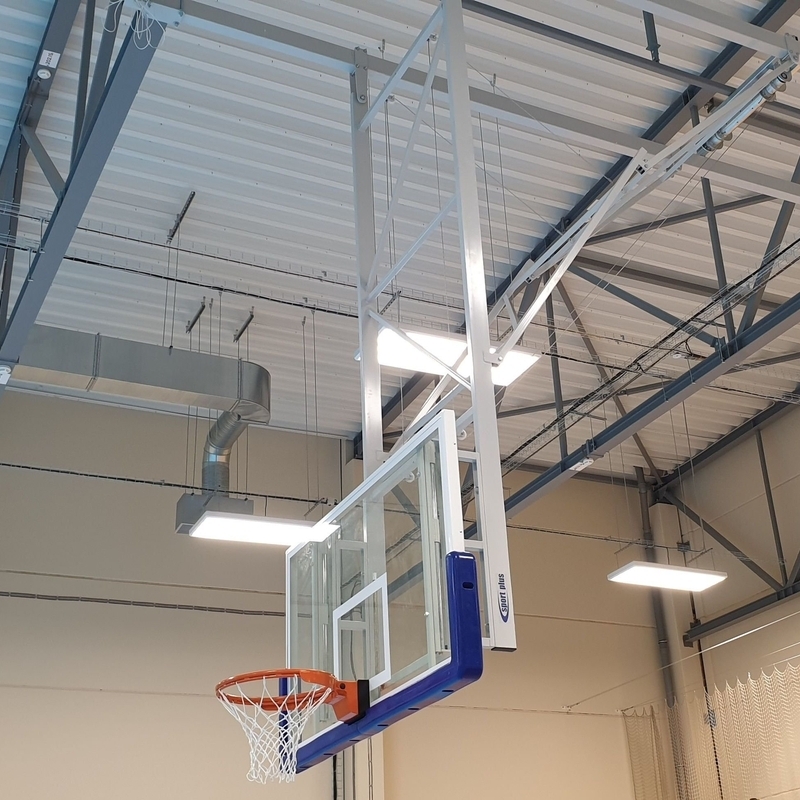

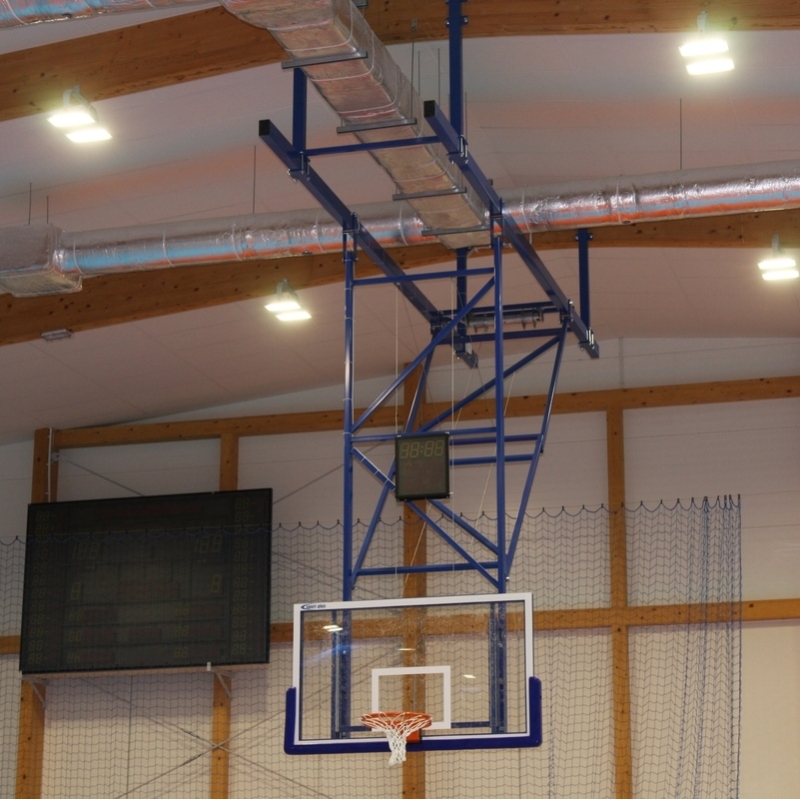

The suspended structure of 105x180 cm whiteboards with electric drive is fixed to the supporting structure of the sports hall ceiling.
It is designed for use in sports halls with a length of more than 36.0 m and a height of the bottom surface of the ceiling up to 10 m.
  • It is made of closed steel profiles, which guarantees full rigidity and stability.
  • By default, the structure folds towards the outside of the court (backwards), but in some cases - especially in halls less than 36 m in length - we design baskets that fold towards the court (forwards), with an individual geometry tailored to the dimensions of the hall.
  • The structure is lowered and raised by means of steel cables wound on the drum of a 230V, P=410W electric motor.
  • After lowering, the board sets in a vertical position (height of the rim above the ground: 3.05 m / 2.6 m with height adjustment mechanism).
  • The motors are controlled by control cassettes or wireless remote controls.
  • The weight of one structure including the board is 250 - 350 kg.
  • Certificate of quality PN (Polish Standard).
  • We adapt the structures to the existing structure of the sports hall roof. When making inquiries, please send documentation (drawing of the girder, hall projection) or provide key dimensions of the object.

Floor structures can be folded towards the center of the hall or towards the back.

Kosz podnoszony rys 2

We invite you to watch a demonstration video showing the process of folding the mechanism of the ceiling structure upwards and downwards
